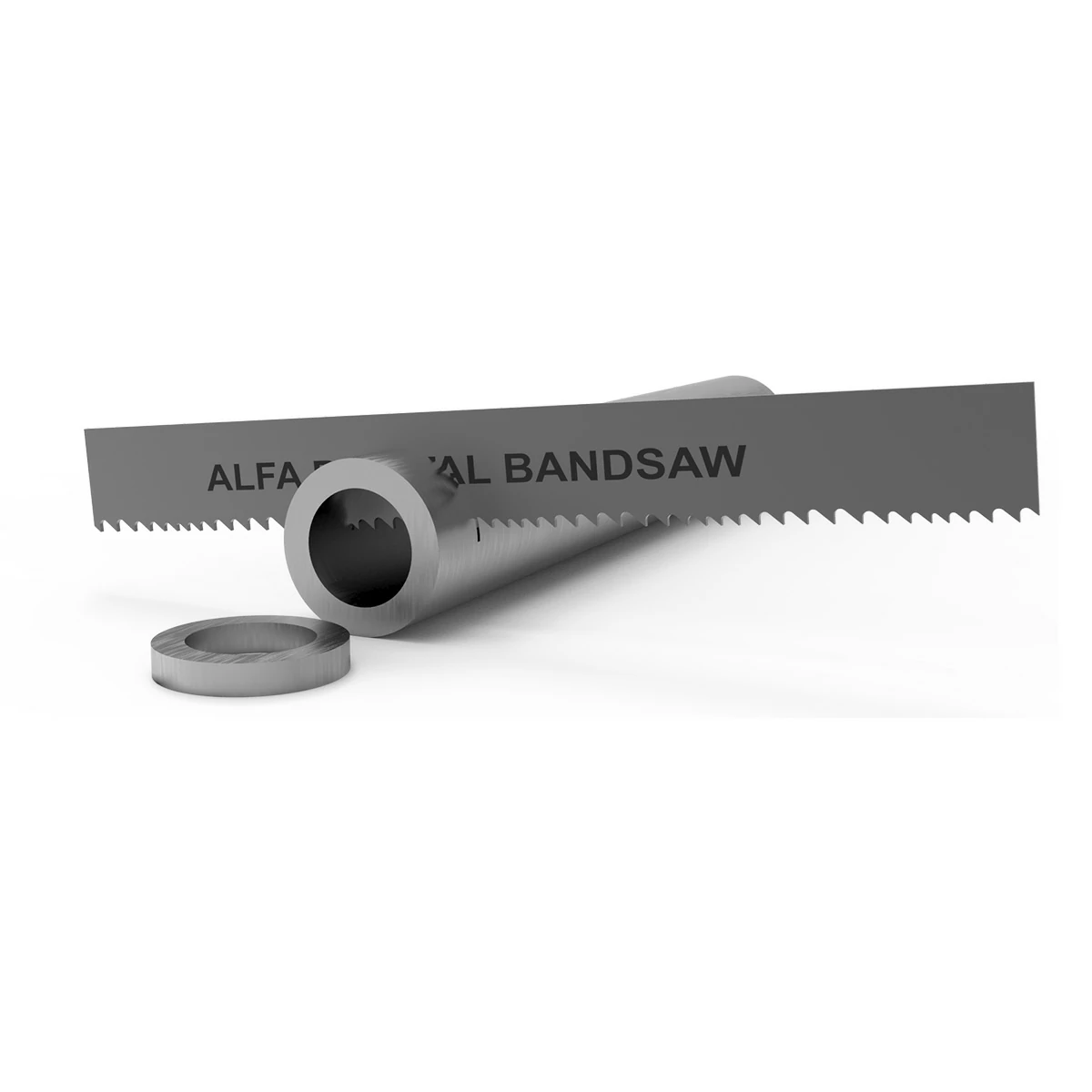

PRODUCT DATASHEET
SW-MS
PRODUCT CODE : ALFABSWMS
FEATURES
Specially designed skip tooth
Large gullet space and standard rake angle
Longer life
Less aggressive cutting but longer life
Download
SW-MS
ASIN : ALFABSWMS
TECHNICAL DETAILS
APPLICATIONS
WARRANTY
TECHNICAL DETAILS
Size (mm) |
Constant TPI |
Variable TPI |
|---|---|---|
| 13 x 0.65 | 4, 10, 14, 18 | 6/10, 8/12, 10/14 |
| 13 x 0.90 | 4, 10, 14, 18 | 6/10, 8/12, 10/14 |
| 20 x 0.90 | 4, 8, 10, 14, 18 | 4/6, 5/8, 6/10, 8/12, 10/14 |
| 27 x 0.90 | 4, 8, 10, 14, 18 | 4/6, 5/8, 6/10, 8/12, 10/14 |
| 34 x 1.10 | 4 | 4/6, 5/8, 6/10, 8/12 |
| 41 x 1.30 | 4 | 4/6, 5/8, 6/10 |
APPLICATIONS
Applications
- Mild steel
- EN series
- High carbon steels
- Structural steels
- Tool steels having large profiles
- Solids (Upto 35 HRC)
Cutting Cross-sections
 |
 |
 |
 |
WARRANTY
Alfa warrants to the original owner that its products are free from defects in material and workmanship for the following periods from the date of the original purchase. Please provide proof of date of purchase when making claim. All other products are covered under our manufacturer's warranty which guarantees the products to be free from defects in material and workmanship for a period of 90 days
